60min
FLIGHT TIME
20kg
PAYLOAD
6ACE
MOTORS

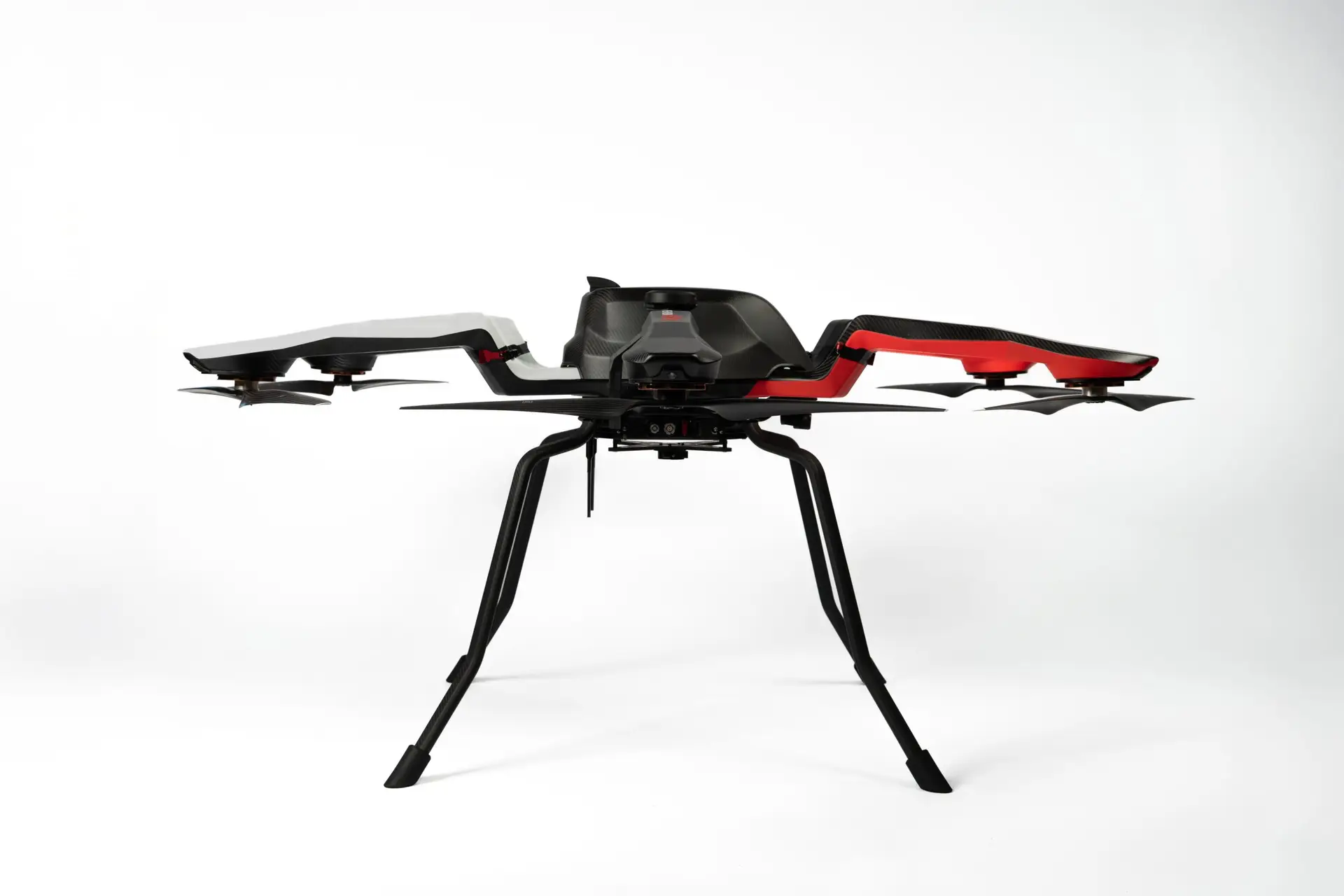

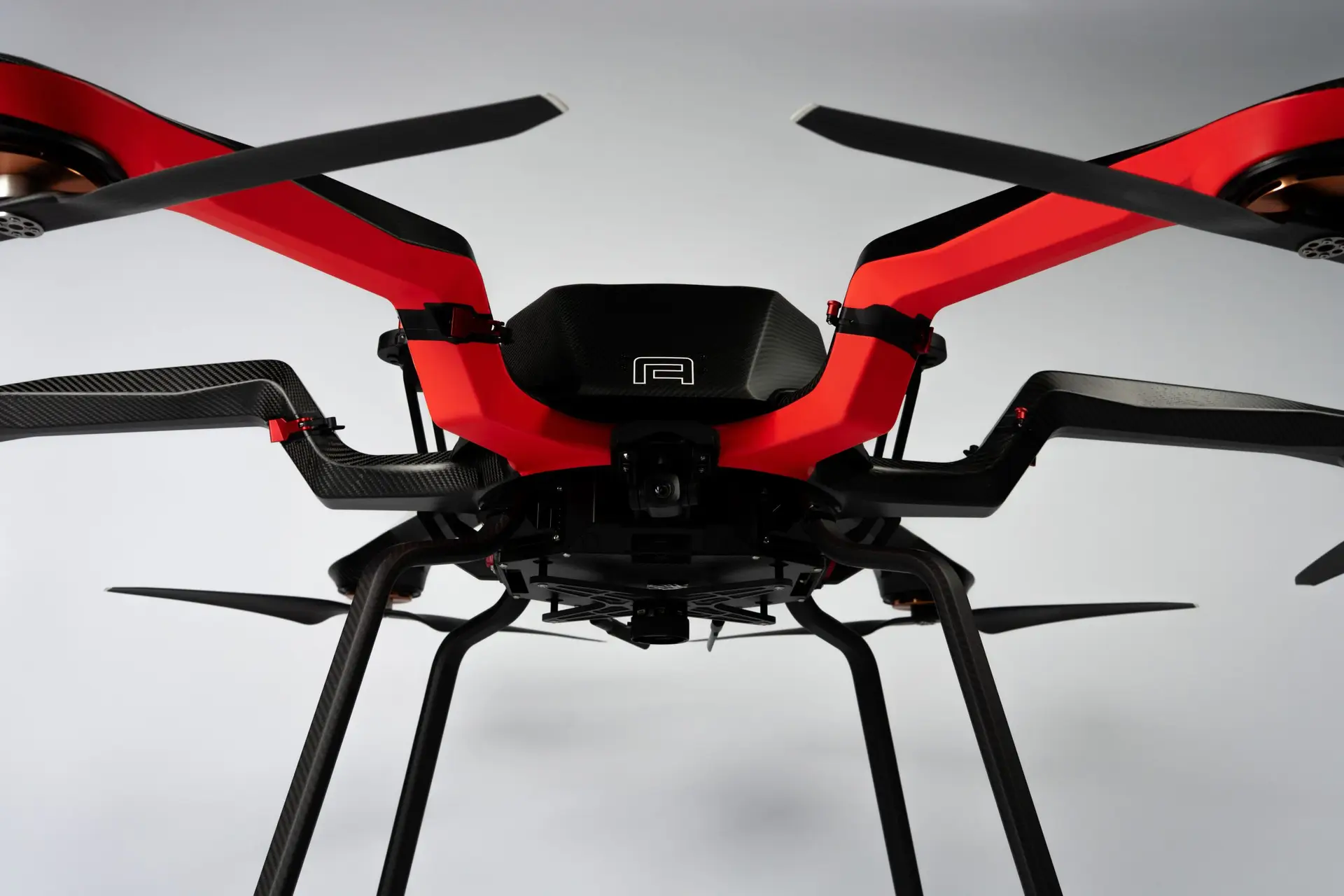

NOA - THE ULTIMATE
Designed to perform- crafted by hand in The Netherlands.

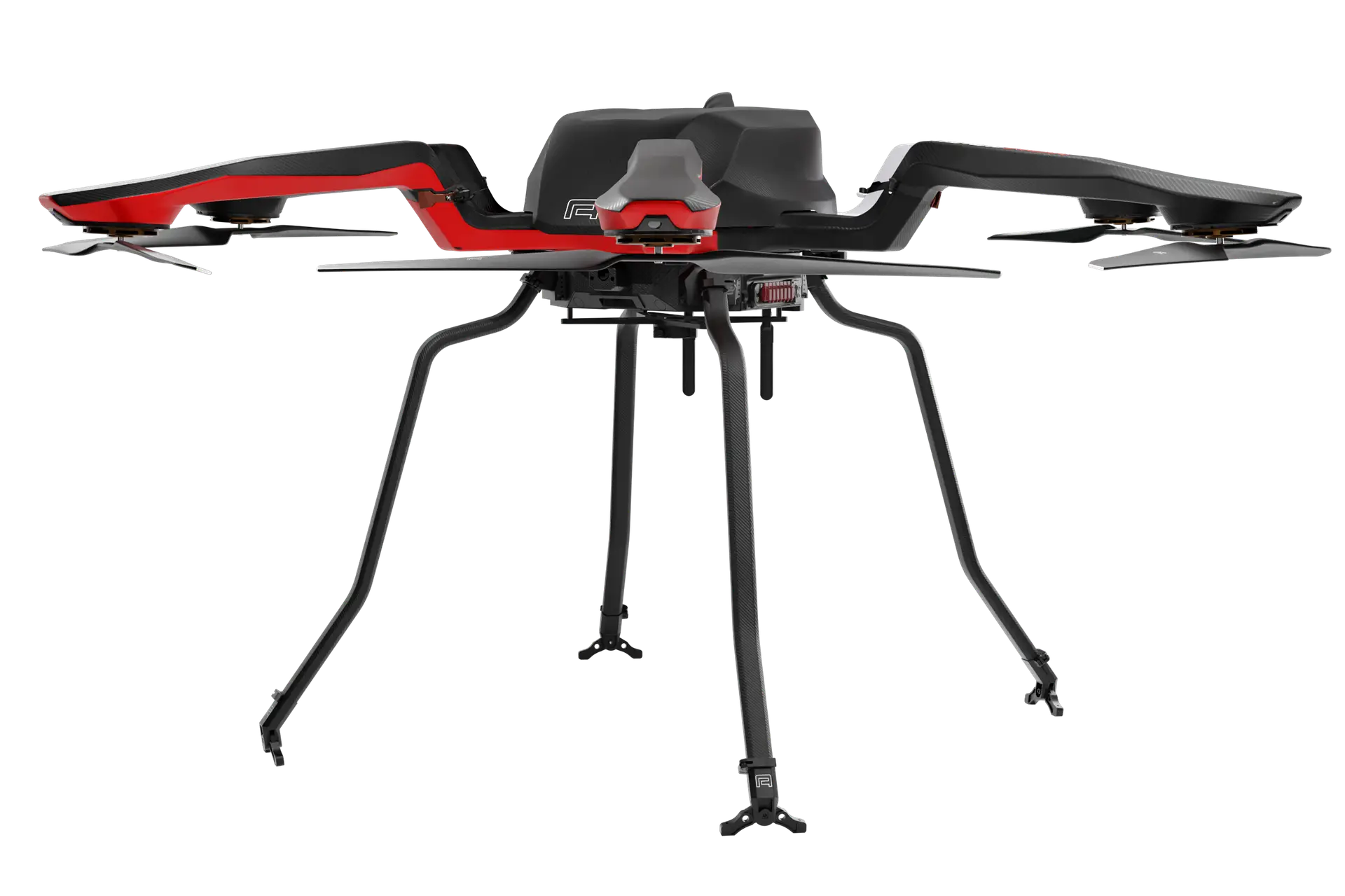

O V E R V I E W
NOA
Motors
Acecore brushless motors

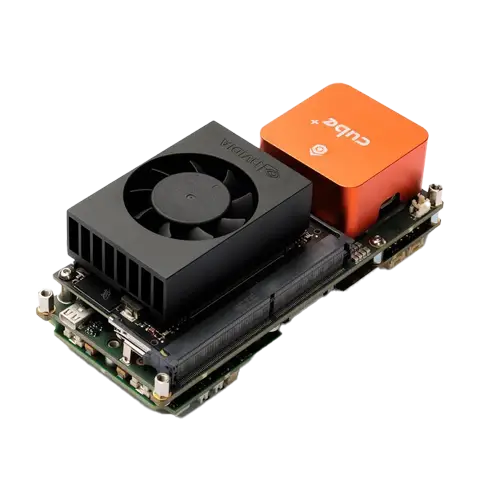

Autopilot
Orange or Blue Cube
Power
Tattu 11.000A, 17.000A or 23.000A
Flight time
Max. 60 minutes
Wind resistance
28 knots or 14.4 m/s continuous
MTOW
36.9 kg/ 81.18 lbs
*<25kg/ 55 lbs version available
Payload weight
Max. 20 kilograms
Datalink range
16 km/ 9.9 mi
Build
True carbon fiber
F L I G H T T I M E T A B L E
NOA
K E Y F E A T U R E S
NOA
ENDURANCE
The Acecore Noa hexacopter carries A 3kg/ 6.6lbs payload such as the Sony A7R iv and Gremsy T3 V3 gimbal for over 40 minutes. Land surveying, 2D & 3D LiDAR mapping, wind turbine/ powerline inspection and a wide array of professions will find the extended endurance especially useful, covering more ground in a day than ever before.

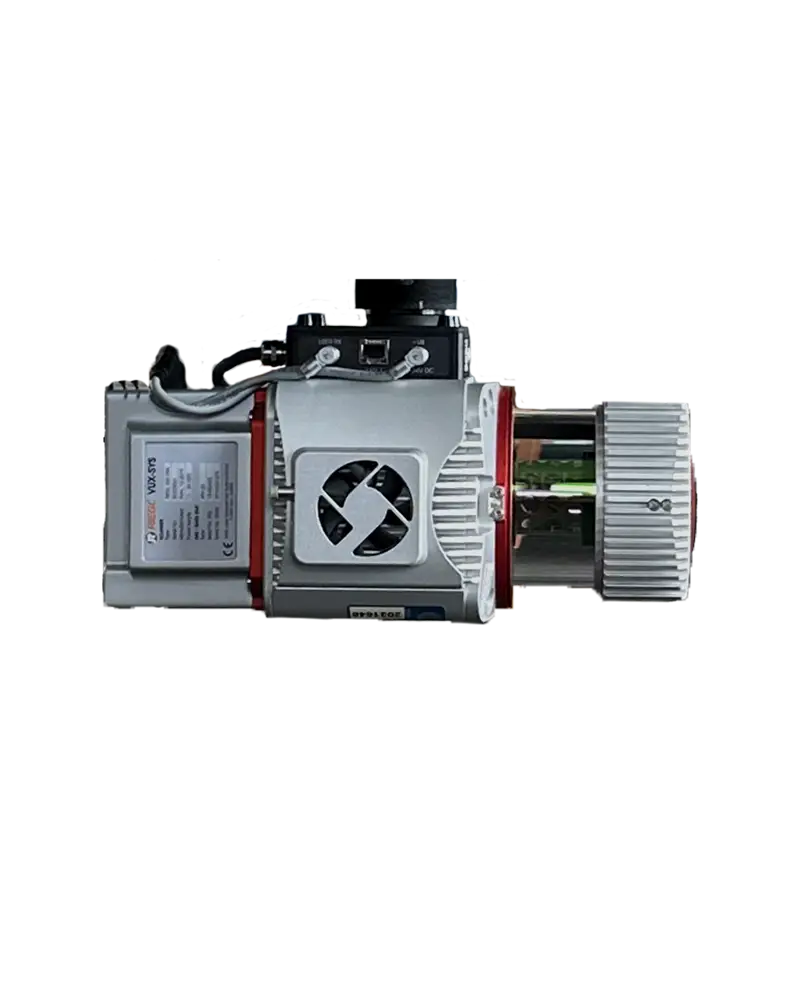

LiDAR PLATFORM

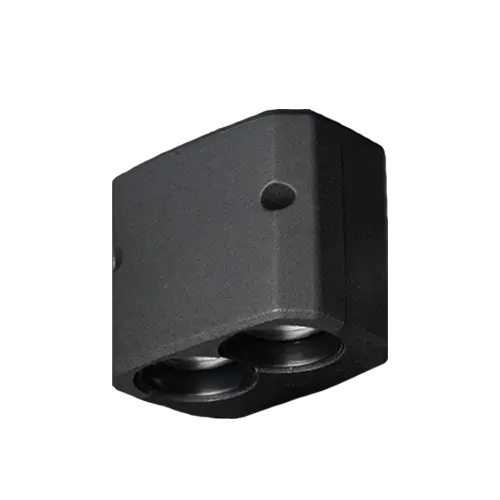

Noa’s excellent flight performance, endurance, and internally stabilized quickrelease make it a workhorse for LiDAR applications. It is capable of laser-guided terrain following and has a retractable landing gear for a 360 degrees unobstructed field of view. Noa’s generous payload capacity allows users to configure it with the highest spec LiDAR systems reaching accuracies up to 10mm with photo-realistically colored point clouds.

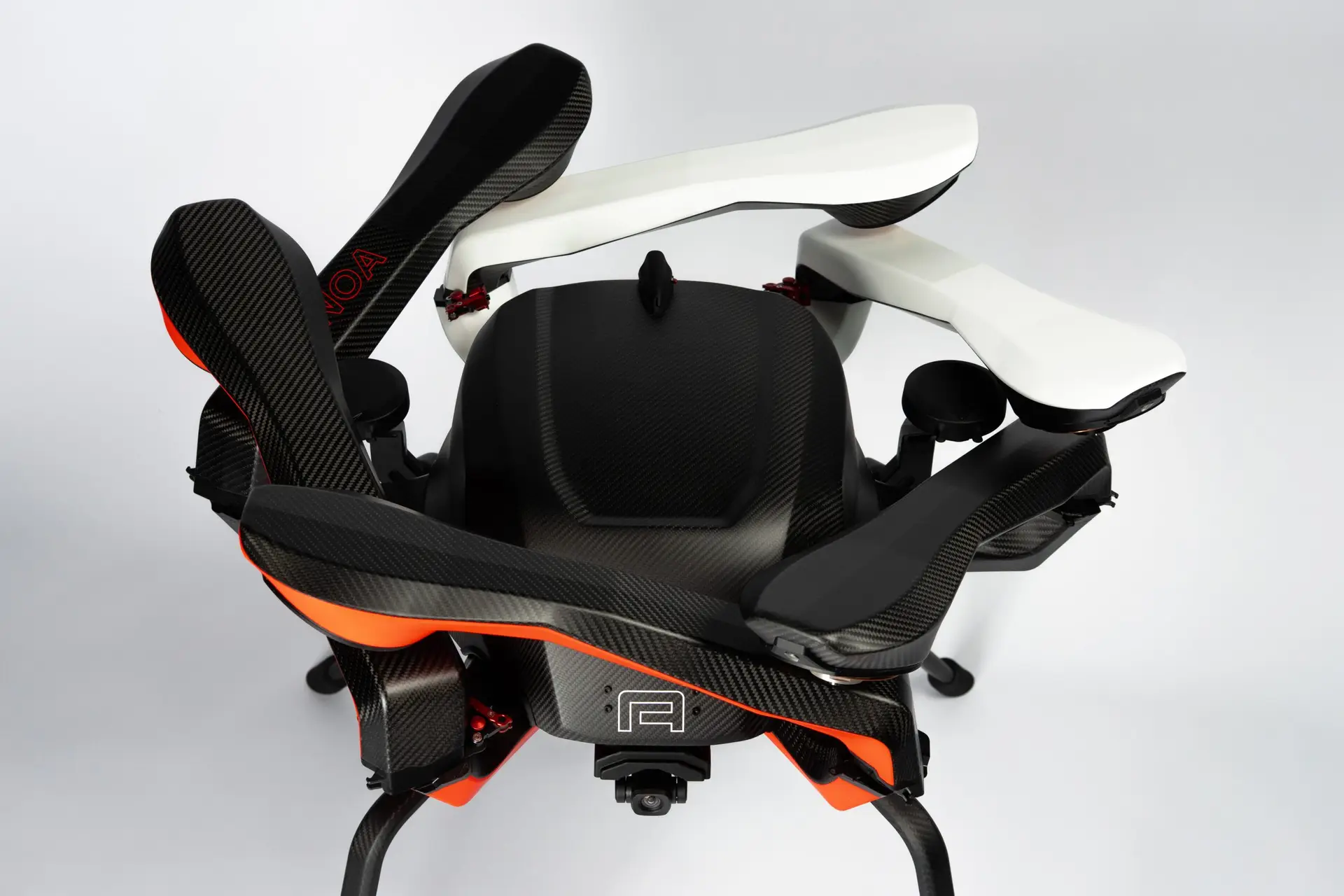

TOOLLESS SETUP

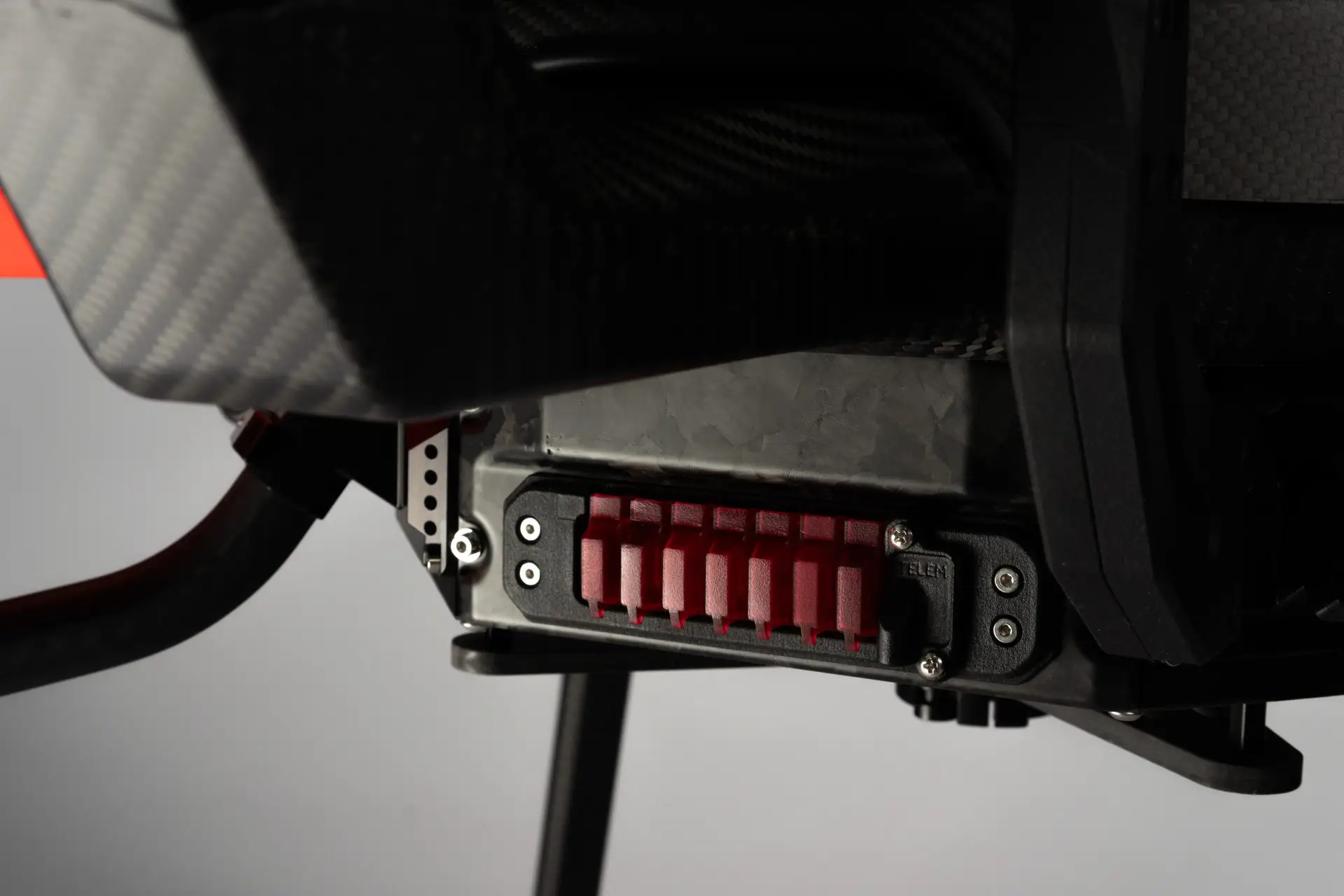

Four battery packs ranging from 11A-23A can be taken from Noa’s carbon fiber flight case and locked into the drone by the new shark fin battery latch. Each of the six booms mount to Noa’s centerpiece using double action quick release locks. Screw-on propellor adapters result in a completely toolless setup of the system.

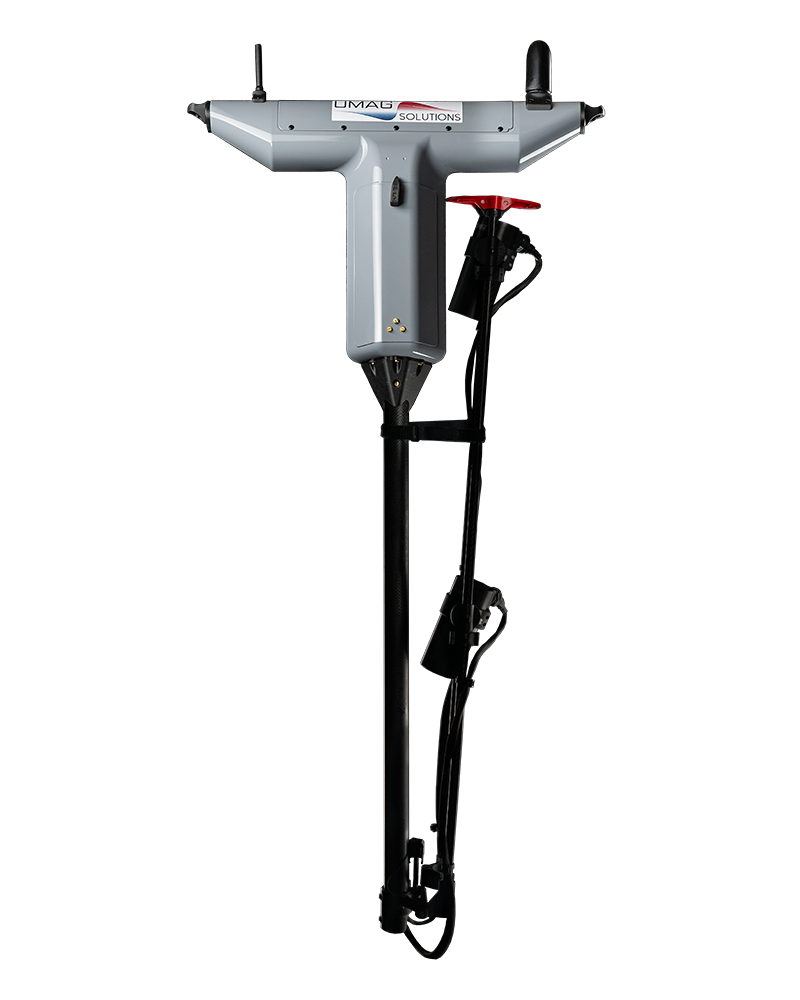

CUSTOM INTEGRATIONS
Add non-standard specialized equipment to your drone.
Although Acecore offers many of today’s most advanced payloads and setups as off-the-shelf products, we love doing custom projects: it’s what separates us from the rest. Acecore builds commercial/ military spec drones to your wishes so you can stand out in your field of work.
Let us know what camera, sensor, module or other hardware you need installed and our engineers will make it happen.
O P T I O N S
NOA

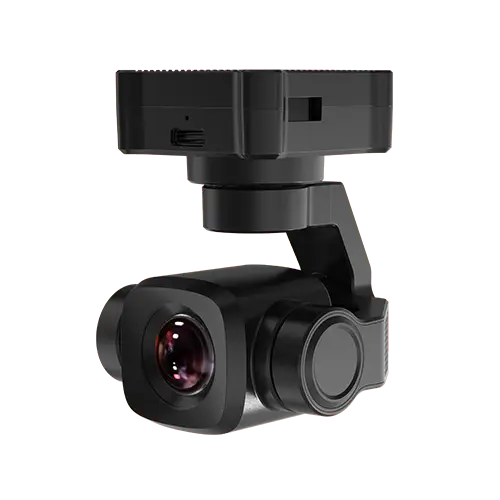

FPV Package
Digital first-person-view camera for pilot orientation.
Payload top mount
Stabilized payload mount on top of the drone to get under the subject.
RTK GNSS
Centimeter level accuracy offers real time drone stability improvement.
Full camera control
Take full control of Sony, Workswell, Phase One or other cameras' functionality while airborne.
Mapping module
Automatically geotags images with (RTK) GPS data from the drone's systems.

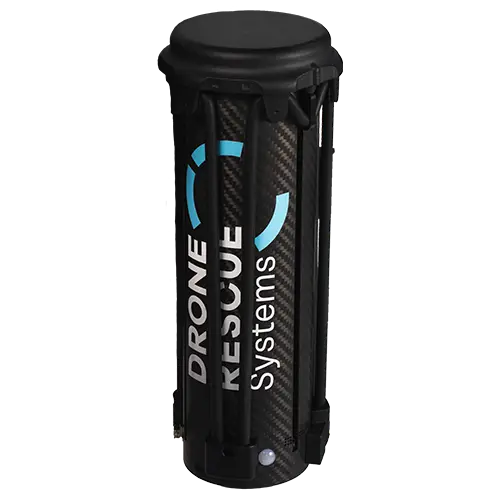

Emergency parachute
Operational safety measure to minimize damage risks in hazardous environments.
BESPOKE COLORS
Customize the entire color scheme of your Noa to make it stand out, or blend in.
- Any Pantone color
- Glossy or satin matte finish
- Custom LED configuration
- Add company logos
O P T I O N S
CONTROLLERS
Herelink George
All-in-one datalink for UAV control, payload control and mission planning at 10km range.
FrSky George
16-channel remote for UAV control >30km, optional monitor and video links.
Dual Operator
Adds dedicated Ground Station pro for payload operation and mission planning.
