New propulsion system, familiar dependability
Our best optimized UAS ever. The Zoe has been on the market since 2017, since then it's got an entirely new propulsion system and internal layout bringing the maximum flight time to 47 minutes. Combined with multiband F9P RTK, modular payload bay and numerous payload integrations; it's the most versatile drone yet.
47 minutes real world flight time.
5kg maximum payload weight.
AES256 encrypted radio link.
Endless configurations
Each Zoe is tailor made to your specifications. Its abundant lifting capacity and modular setup allows users to combine the payload, batteries and additional modules to form the perfectly balanced system for each application - or multiple at once. There is a setup for everything.
Security
Mapping/ Inspection

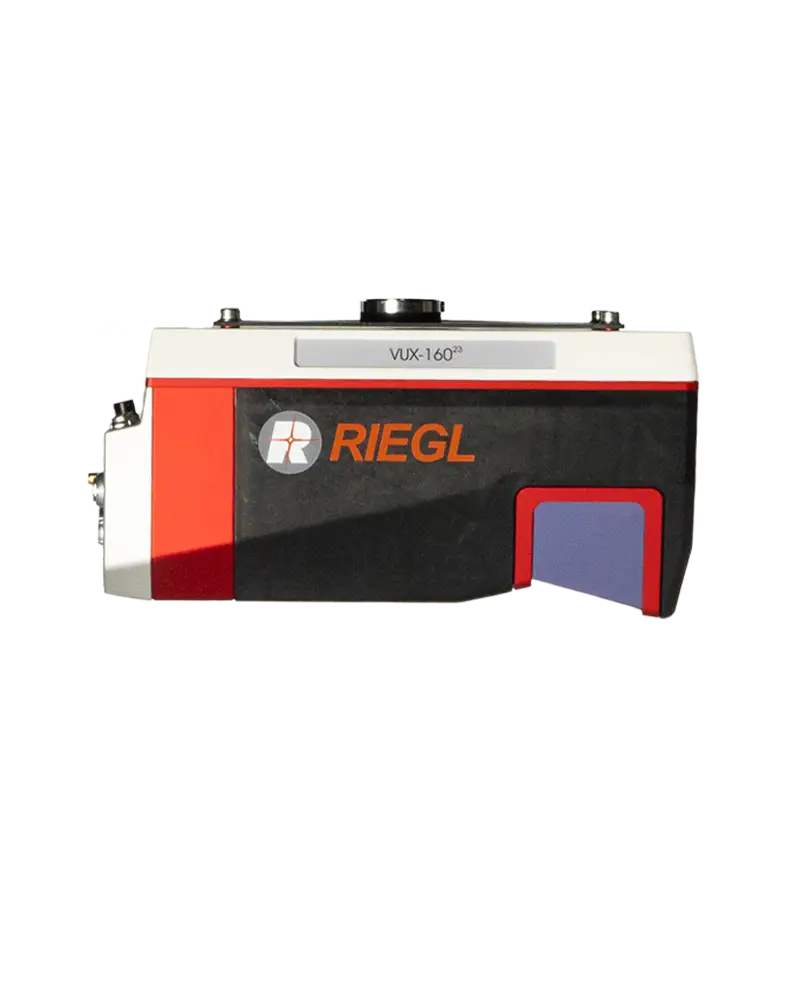

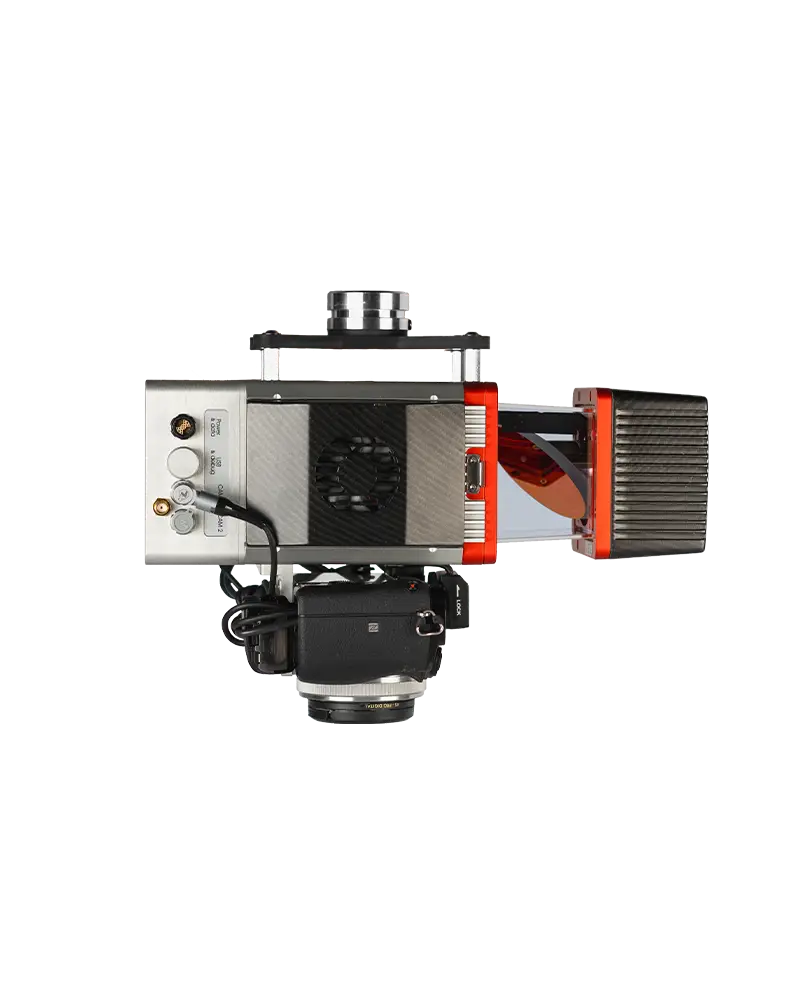

LiDAR
Fly longer. Do more.
Endurance - quadcopter
Push forward.
Performance - octocopter
THE ACECORE ZOE - A NEW ERA
Designed to perform- crafted by hand in The Netherlands.
O V E R V I E W
ZOE
Motors
Acecore brushless motors
Autopilot
Cube or Skynode
Power
Tattu 4500mAh up to Tattu 17000mAh
Flight time
Max. 47 minutes
MTOW
10.5 kg/ 23 lbs
Wind resistance
30 knots/ 15.4 m/s continuous
Payload weight
Max. 5 kilograms
Datalink range
16 km/ 9.9 mi
Build
True carbon fiber
F L I G H T T I M E T A B L E
ZOE
K E Y F E A T U R E S
ZOE
AERODYNAMIC DESIGN
Zoe’s aerodynamic dutch-design carbon fiber frame puts it in a class of its own. The way it doesn’t hang, but rather stand in the air makes it highly weather proof. The Acecore Zoe is both wind and rain resistant which means it can operate at contiuous wind speeds of 7 Beaufort/ 30 knots with rain up to 9mm/h.
The hollow arms generate an active airflow through the entire system and pulls hot air out of the motor mounts, away from the critical components. As a result Zoe will operate at temperatures up to 50 degrees Celsius.
MODULAR SYSTEM
Designed with versatility in mind, Zoe’s body is modular and can easily be taken apart for hardware upgrades and customizations. The heatsink has several mounting points where additional gear can be secured, and the payload mount is configurable to allow for many third party payload integrations.
UNLIMITED FLIGHT TIME
Tethering Zoe to an Elistair Safe-T 2 station gives professionals access to unlimited flight times. At 80 meters height, Zoe can carry a payload of 2.7 kilograms like a Workswell WIRIS Security in a Gremsy S1 gimbal all day.
In a tethered operation Zoe can follow any moving vehicle autonomously- it will keep its position above the van, truck, UGV, boat or ATV that the Safe-T 2 and high accuracy RTK GPS is mounted to.
Leverage this autonomous vehicle follow me function for new applications such as convoy protection or car LiDAR scanning.
CUSTOM INTEGRATIONS
Although Acecore offers many of today’s most advanced payloads and setups as off-the-shelf products, we love doing custom projects: it’s what separates us from the rest. Acecore builds commercial/ military spec drones to your wishes so you can stand out in your field of work.
Let us know what camera, sensor, module or other hardware you need installed and our engineers will make it happen.
UPGRADE TO OCTOCOPTER
The Acecore Zoe is configurable with a fully redundant propulsion system.
- Upgrade to 8 motors
- Continue flight with a motor or propeller failure
- Recover payload safely
O P T I O N S
ZOE
FPV Package
Digital first-person-view camera for pilot orientation.
Payload top mount
Stabilized payload mount on top of the drone to get under the subject.
RTK GNSS
Centimeter level accuracy offers real time drone stability improvement.
Full camera control
Take full control of Sony, Workswell, Phase One or other cameras' functionality while airborne.
Mapping module
Automatically geotags images with (RTK) GPS data from the drone's systems.
Emergency parachute
Operational safety measure to minimize damage risks in hazardous environments.
BESPOKE COLORS
Customize the entire color scheme of your Zoe to make it stand out, or blend in.
- Any pantone color
- Glossy or satin matte finish
- Custom LED configuration
- Add company logos
O P T I O N S
CONTROLLERS
Herelink George
All-in-one datalink for UAV control, payload control and mission planning >5km range.
FrSky George
16-channel remote for UAV control >30km, optional monitor and video links.
Dual Operator
Adds dedicated Ground Station pro for payload operation and mission planning.
